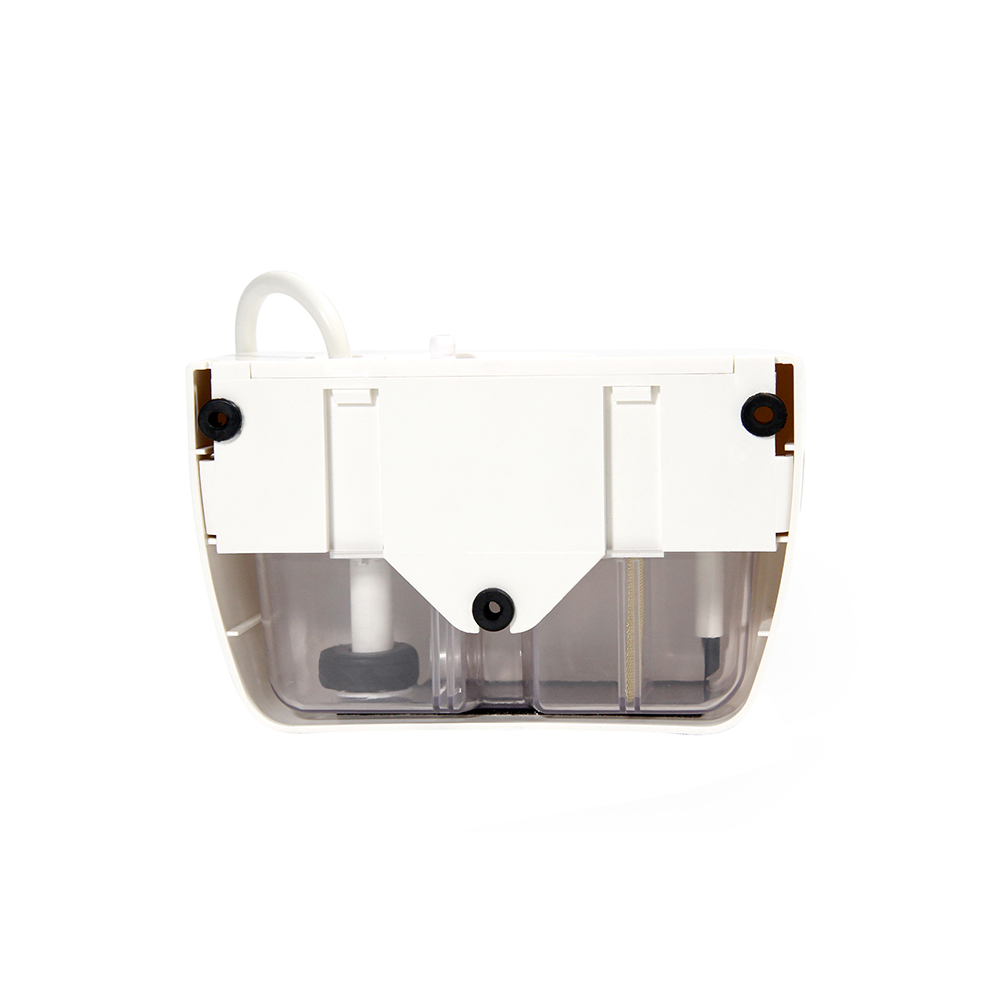

Mute Wedge-40
The sleek, compact design of the Mute series pumps makes them ideal for integration with mini-split and ducted HVAC systems. Operating via float switch mechanism, Mute series delivers exceptional condensate removal performance while maintaining whisper-quiet operation, ensuring optimal environmental comfort.
Product Description
The sleek, compact design of the Mute series pumps makes them ideal for integration with mini-split and ducted HVAC systems. Operating via float switch mechanism, Mute series delivers exceptional condensate removal performance while maintaining whisper-quiet operation, ensuring optimal environmental comfort.
• Float Switch Detection
• High performance
• Simple and quick to install
• Anti-vibration
• Silent Operation
| Power supply | 100-240V AC 50/60Hz |
|---|---|
| Max. flow | 40L/h (10.6GPH) @ 0 head |
| Sound level | 20 dB(A) @1M (3.3ft) |
| Max. discharge head | 20M (65.6ft) |
| Water Storage | 230ml |
| Max. unit output | 46kW / 157,000Btu/h |
| Safety switch | 3A Normally closed |
| Max. water temperature | 70°C |
| Discharge tube | 6mm ID |
| Class | II appliance |
| Rated | Continuous |
| IP Protection | IPX5 |
| Fully potted | Yes |
| L×W×H | 164mm × 70mm × 106mm |
| Logistics | Mute Wedge |
|---|---|
| Pcs Per Carton | 20 |
| Weight Per Carton (kg) | 14.5 |
| Carton Length (cm) | 39.5 |
| Carton Width (cm) | 39 |
| Carton Height (cm) | 28 |
Assembled Mute Wedge
Installation manual
Check valve
Power cable
