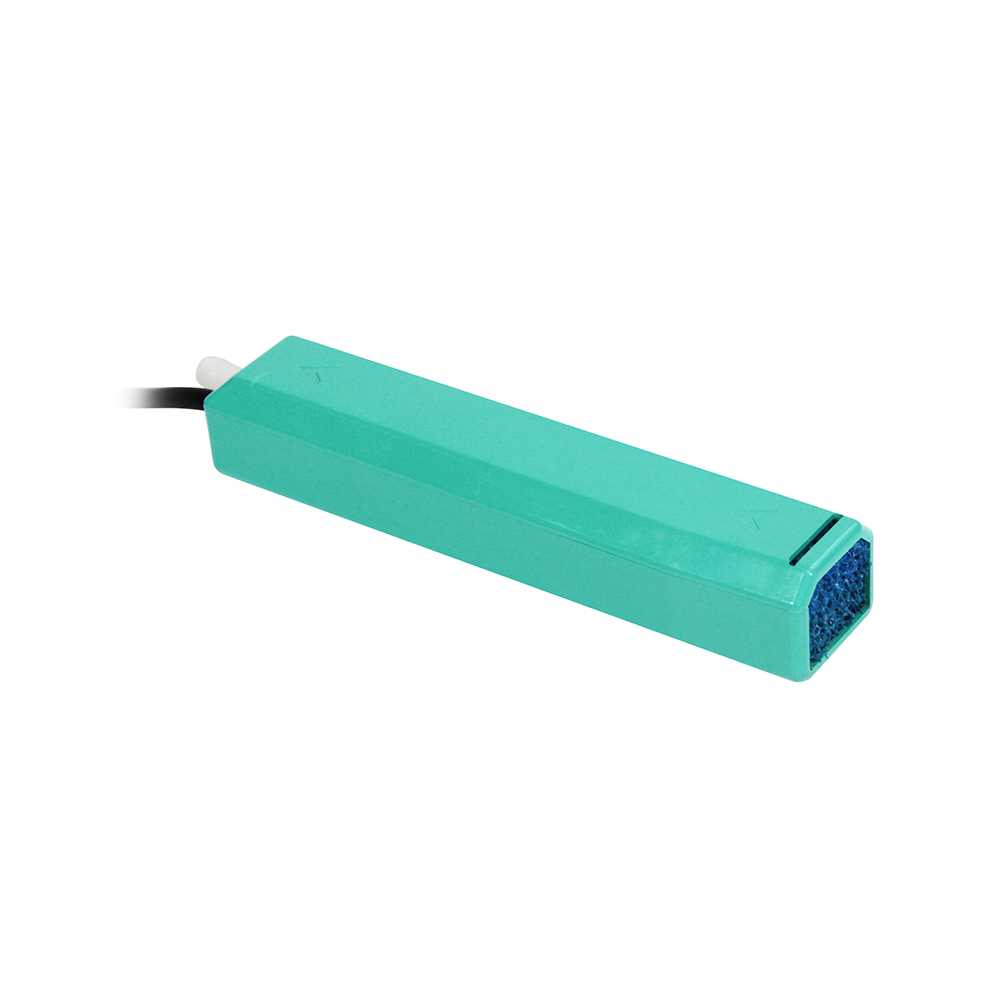

Tranquil-D
The Tranquil-D features a capacitive sensor for water detection, enhancing reliability over traditional float switches. Its soft-start mode minimizes startup noise and extends the lifespan of the pump and electronic components. Completely-sealed design with IP68 protection grade makes Tranquil-D submersible in condensate trays/pans, with high pumping capacity.
Product Description
The Tranquil-D features a capacitive sensor for water detection, enhancing reliability over traditional float switches. Its soft-start mode minimizes startup noise and extends the lifespan of the pump and electronic components. Completely-sealed design with IP68 protection grade makes Tranquil-D submersible in condensate trays/pans, with high pumping capacity.
• Capacitive sensor
• Variable flow rate
• Diagnostic LED
• Submersible in Condensate Pans
• Built-in operation tracking
• Ultra-quiet operation
• Up to 46 kw / 157,000 Btu/h
| Power supply | 100-240V AC 50/60Hz <4W |
|---|---|
| Max. flow | 40 L/h (10.6 GPH), range from 20-40 L/H (5.3-10.6 GPH) |
| Sound level | <19 dB(A) @1M (3.3 ft) |
| Max. discharge head | 20 M (65.6 ft) |
| Max. suction lift | 2 M (6.6 ft) |
| Max. unit output | 46 kW / 157,000 Btu/h |
| Safety switch | 3A Normally closed |
| Max. water temperature | 40°C |
| Discharge tube | 6 mm ID |
| Class | II appliance |
| Protection | IP68 |
| L×W×H | 176 mm × 34 mm × 41 mm |
| Logistics | Tranquil-D |
|---|---|
| Pcs Per Carton | 20 |
| Weight Per Carton (kg) | 12.2 |
| Carton Length (cm) | 44 |
| Carton Width (cm) | 28 |
| Carton Height (cm) | 36 |
Assembled Tranquil-D
150 cm length of 6 mm i.d vinyl tube
Plug connector
Power cable
1A fuse
Anti-siphon valve
Check valve
Nylon clamps 4 × 200 mm × 4
